The Digital Signal Generator
These two photographs show the 33MHz DDS signal generator that was built from projects described by Eamon EI9GQ

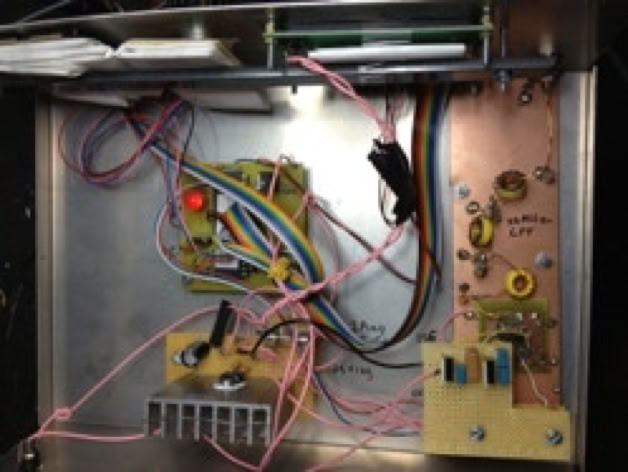

The photograph to the right shows 3 PCBs. The left hand PCB contains the OCXO at the top then the DDS chip and below the LPF. The PCB with the heat sink is the PSU PCB and the one below is the PIC board that controls the DDS chip.

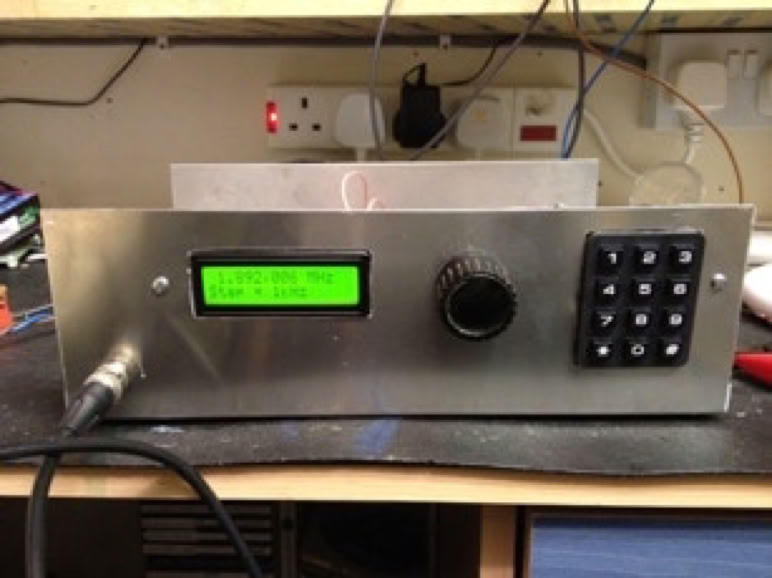

The front panel shows an LCD display, selector switch and keypad.
